Product Overview

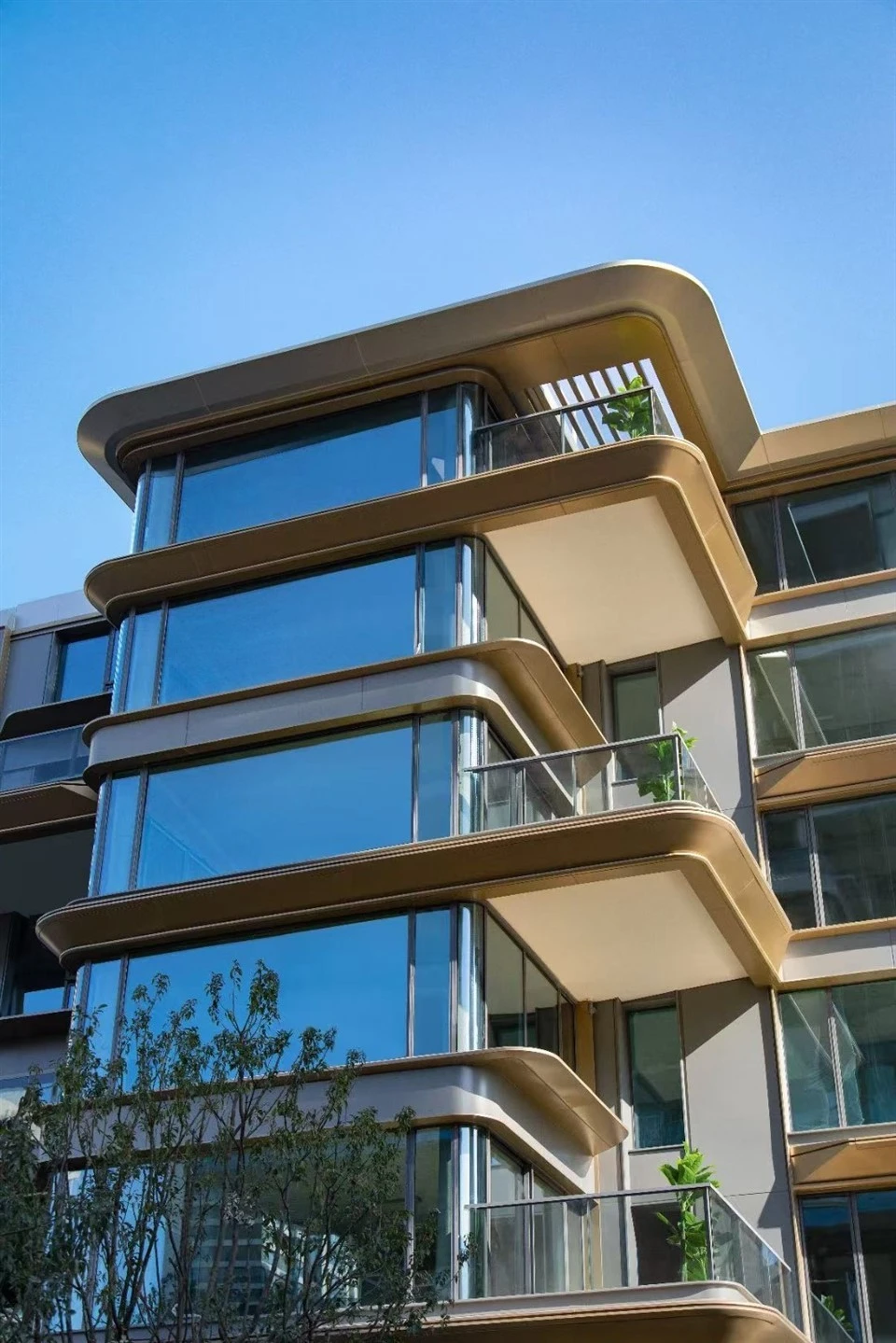

Glass curtain wall for residential houses is a curtain wall application specifically for residential buildings. Compared with commercial curtain wall, it focuses on transparency, living comfort, and integration with interior spaces. Large glass panels bring daylight into the interior and connect the interior with outdoor views.
These systems are used in high-end residential landscape facades, villa large daylight areas, sunrooms, curtain wall residential balconies, enclosed residential balconies, and residential community facades.
Core Advantages
Glass configuration for daylight and thermal balance:
The glass configuration is 5 mm + 12A + 5 mm insulated tempered, with a light transmittance of approximately 70%. In high-end residential landscape facades, this provides daylight while maintaining thermal insulation through the insulated cavity.
Thermal break framing for residential comfort:
The framing uses 6063-T6 aluminium profiles with a thermal break design. In residential facades and sunrooms, the thermal break reduces heat conduction through the framing compared with a non-thermal-break profile.
Visible frame proportion controlled for transparency:
Panel-to-framing visual proportion is controlled during design. In villa large daylight areas, the visible framing face is minimized while maintaining structural safety.
Opening sash options for residential ventilation:
Opening sashes can be configured as top-hung, bottom-hung, or inward-opening-tilt style. In curtain wall residential balconies, this provides ventilation while keeping the facade line continuous.
Applications
• High-end residential landscape facades
• Villa large daylight areas
• Sunrooms
• Curtain wall residential balconies
• Enclosed residential balconies
• Residential community facades
Specifications
|
Item |
Standard Configuration |
|
Framing profile |
6063-T6 aluminium |
|
Glass configuration |
5 mm + 12A + 5 mm insulated tempered |
|
Light transmittance |
Approx. 70% |
|
Opening type |
Top-hung / bottom-hung / inward-opening-tilt (optional) |
|
Surface treatment |
Powder coating / fluorocarbon coating |
|
Application |
Residential facade, sunroom |
OEM/ODM
Glass curtain wall for residential houses is customized according to the building drawing. Opening sash styles are selectable. Glass configuration and framing specifications can be adjusted according to project requirements.
■ Customizable Items
• Glass configuration
• Framing specifications
• Opening sash type: top-hung, bottom-hung, inward-opening-tilt
• Surface treatment and colour
• Panel-to-framing visual proportion
• Curtain wall scheme according to building drawing
Quality Control
Framing profile dimensions and thermal break bar position are checked on incoming material. Glass configuration, light transmittance, and edge quality are inspected before assembly.
After assembly, opening sash function and sealing contact are tested. A 100% inspection is performed before shipment. Third-party inspection is supported.
FAQ
Q: How is the thermal insulation performance of residential glass curtain wall?
A: Insulated tempered glass is used with thermal break framing profiles. The thermal performance is maintained while achieving the transparency effect. The specific heat transfer coefficient can be adjusted by changing the glass configuration according to project requirements.
Q: Can opening sashes be designed into residential curtain wall?
A: Yes. Top-hung, bottom-hung, and inward-opening-tilt options are available. They provide ventilation while maintaining the continuity of the curtain wall facade.
