Product Overview

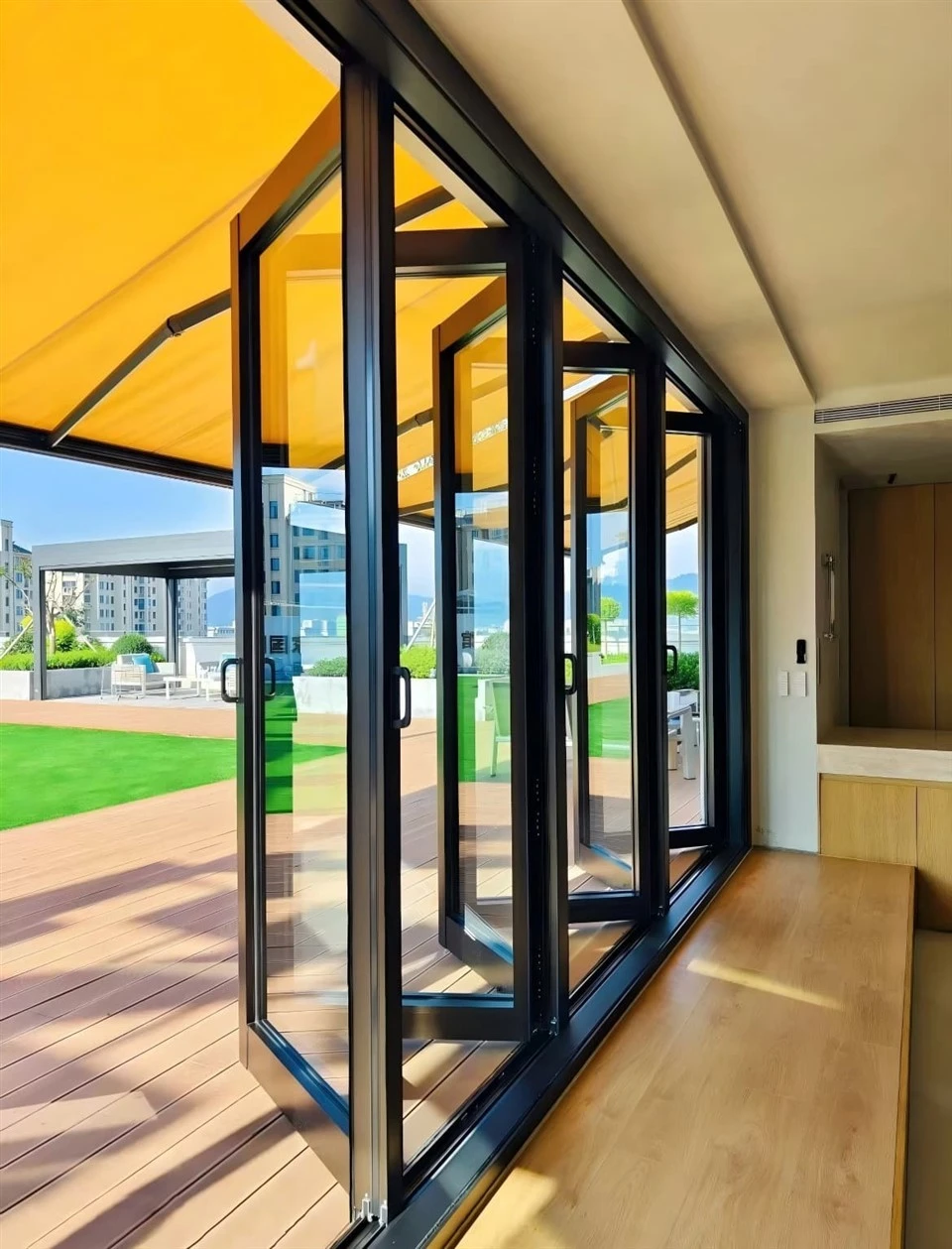

Slim frame bifold doors use a folding sash system: door panels are connected by hinges and fold along a track, stacking compactly at one or both sides of the opening. The frame profile is kept narrow to increase the glass proportion.
These doors are used in balcony and terrace large openings, indoor-outdoor connected spaces, commercial flexible partitions, and courtyard and garden doors.
Core Advantages
Compact stacking after folding:
The panels fold and stack at the side of the opening. In hotel balcony areas and terrace openings, this keeps the passage clear when the door is open, compared with a swing door that needs clearance space.
Multi-panel synchronization:
The door uses folding-specific heavy-duty hinges and a linkage transmission handle. In wide openings with four or more panels, the linkage system keeps panels moving in the same sequence during opening and closing.
Narrow frame with sealing compensation:
The frame width is 60 mm to 80 mm, with multiple EPDM sealing strips and automotive-grade sealing strips. In narrow-frame construction, the multiple sealing lines compensate for the reduced frame contact area.
Profile and glass build:
The frame uses 6063-T5 aluminium profiles with wall thickness from 1.4 mm to 2.0 mm. Standard glass is 5 mm + 12A + 5 mm tempered insulated.
Applications
• Balcony and terrace large openings
• Indoor-outdoor connected spaces
• Commercial flexible partitions
• Courtyard and garden doors
Specifications
|
Item |
Standard Configuration |
|
Profile material |
6063-T5 aluminium |
|
Profile wall thickness |
1.4–2.0 mm (customizable) |
|
Frame width |
60–80 mm (customizable) |
|
Glass configuration |
5 mm + 12A + 5 mm tempered insulated |
|
Opening type |
Multi-panel folding, left/right sliding fold |
|
Hardware |
Folding-specific heavy-duty hinges, linkage transmission handle |
|
Sealing strip |
EPDM / automotive-grade sealing strip |
OEM/ODM
Slim frame bifold doors support custom folding panel quantity and opening direction to drawings. Left-folding or double-side folding solutions can be configured according to the opening size. OEM and ODM are supported.
■ Customizable Items
• Profile wall thickness
• Frame width
• Folding panel quantity
• Opening direction: left-fold, right-fold, or double-side fold
• Glass configuration
• Surface treatment and color
• Hardware configuration
Quality Control
- Profile dimensions, wall thickness, and surface finish are checked on incoming material. Hinge and linkage components are inspected for fit before assembly.
- After assembly, the full folding sequence is tested: each panel is opened and closed through the complete cycle to check synchronization, stacking width, and sealing strip contact. A 100% inspection is performed before shipment.
FAQ
Q: Is there a limit to the number of folding panels on slim frame bifold doors?
A: There is no fixed limit. The panel quantity is determined by the opening width and single panel size. The engineering team provides a panel configuration based on the drawing.
Q: Does the narrow frame design affect sealing performance?
A: Multiple EPDM sealing strips and automotive-grade sealing strips are used. In narrow-frame construction, the multiple sealing lines maintain air tightness and water tightness.
