Product Overview

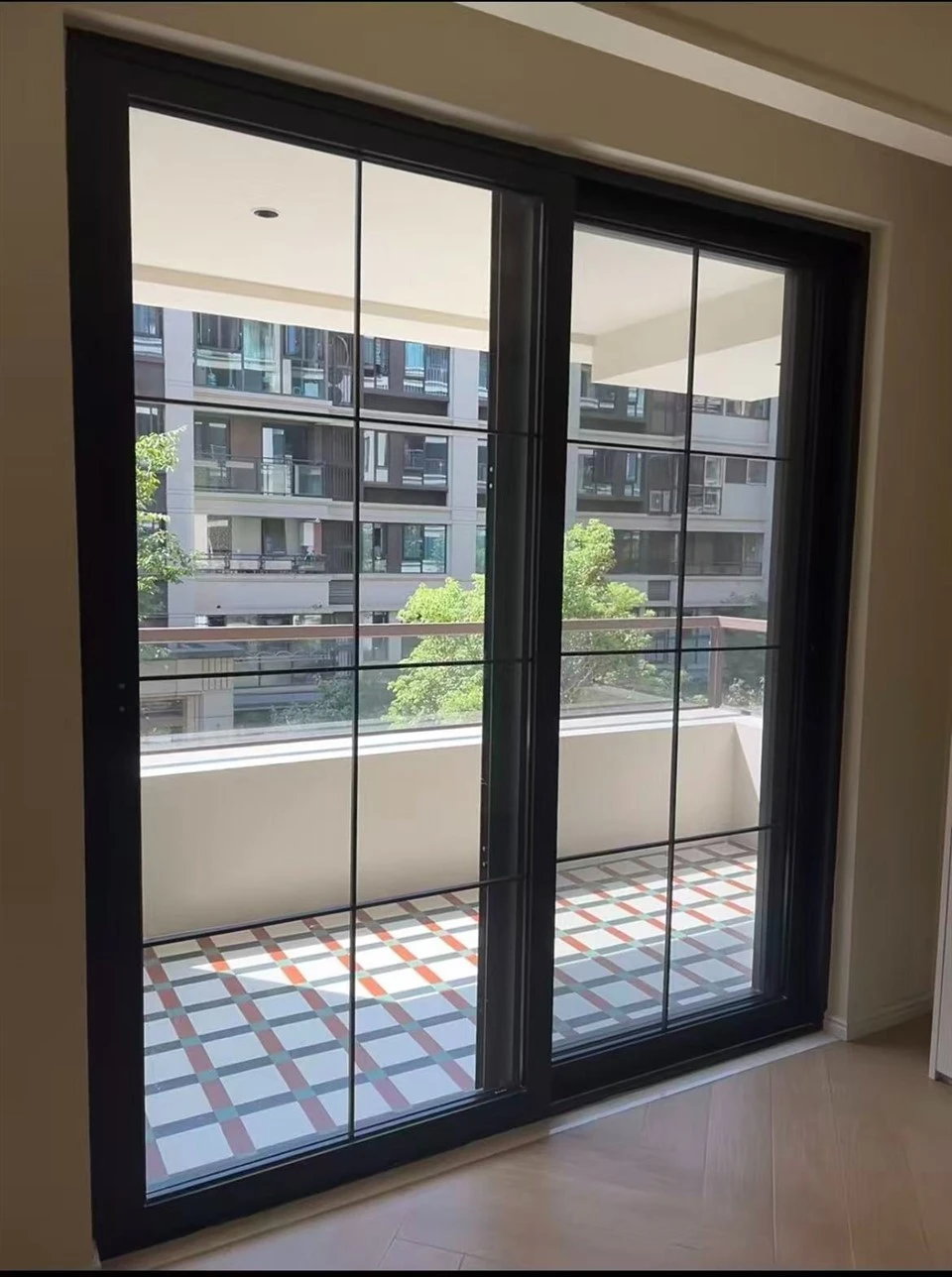

Exterior aluminum sliding glass doors are sliding door systems with large glass panels, used to connect indoor and outdoor spaces. The sliding structure maximizes daylight and views while maintaining passage function.
These doors are used in residential balcony and terrace entrances, villa courtyard and garden doors, hotel guest room balcony doors, commercial outdoor passage doors, and sunroom sliding doors.
Core Advantages
Large glass area with passage function:
The door uses large glass sashes with a sliding structure. In residential terrace entrances and hotel balcony doors, this provides daylight and outdoor views while keeping the doorway functional.
Stable operation after repeated opening and closing:
The door uses a dedicated sliding roller system. In hotel projects where balcony doors are opened and closed frequently, the sash remains level without sinking or sticking.
Outdoor sealing and weather resistance:
EPDM sealing strips and automotive-grade sealing strips are used together. In exterior applications, this combination helps block wind-driven rain and dust.
Profile and glass build:
The frame uses 6063-T5 aluminium profiles with wall thickness from 1.8 mm to 2.2 mm and frame width from 80 mm to 120 mm. Standard glass is 5 mm + 12A + 5 mm tempered insulated glass.
Applications
• Residential balcony and terrace entrances
• Villa courtyard and garden doors
• Hotel guest room balcony doors
• Commercial outdoor passage doors
• Sunroom sliding doors
Specifications
|
Item |
Standard Configuration |
|
Profile material |
6063-T5 aluminium |
|
Profile wall thickness |
1.8–2.2 mm (customizable) |
|
Frame width |
80–120 mm (customizable) |
|
Glass configuration |
5 mm + 12A + 5 mm tempered insulated (other thicknesses available) |
|
Surface treatment |
Electrostatic powder coating / fluorocarbon powder coating |
|
Hardware |
Dedicated sliding door rollers, handle, latch lock |
|
Sealing strip |
EPDM / automotive-grade sealing strip |
|
Sealant |
Neutral silicone weather-resistant sealant |
OEM/ODM
Exterior aluminum sliding glass doors can be produced to technical drawings or sample prototypes. Profile supplier resources cover multiple mainstream domestic suppliers. The profile matching solution can be adjusted according to the technical standard of the project country. Different colors and models can be mixed within one order.
■ Customizable Items
Profile wall thickness
Frame width
Glass configuration and thickness
Surface treatment and color
Hardware configuration
Mixed colors and models within one order
Quality Control
Profile dimensions, wall thickness, and surface finish are checked on incoming material. Roller and track fit are inspected before assembly.
After assembly, each door is tested for sliding operation and sealing strip fit. A 100% inspection is performed before shipment. Standard products carry a 10-year warranty; hardware accessories carry a 2-year warranty.
FAQ
Q: What is the load capacity of the sliding rollers on exterior aluminum sliding glass doors?
A: A dedicated heavy-duty sliding roller system is used. The load capacity per sash depends on the model configuration and is selected to match large glass door sashes for long-term use.
Q: Does sealing performance decrease when product are used outdoors?
A: EPDM sealing strips and automotive-grade sealing strips are used together. They are selected for outdoor exposure and maintain sealing performance under long-term outdoor use.
